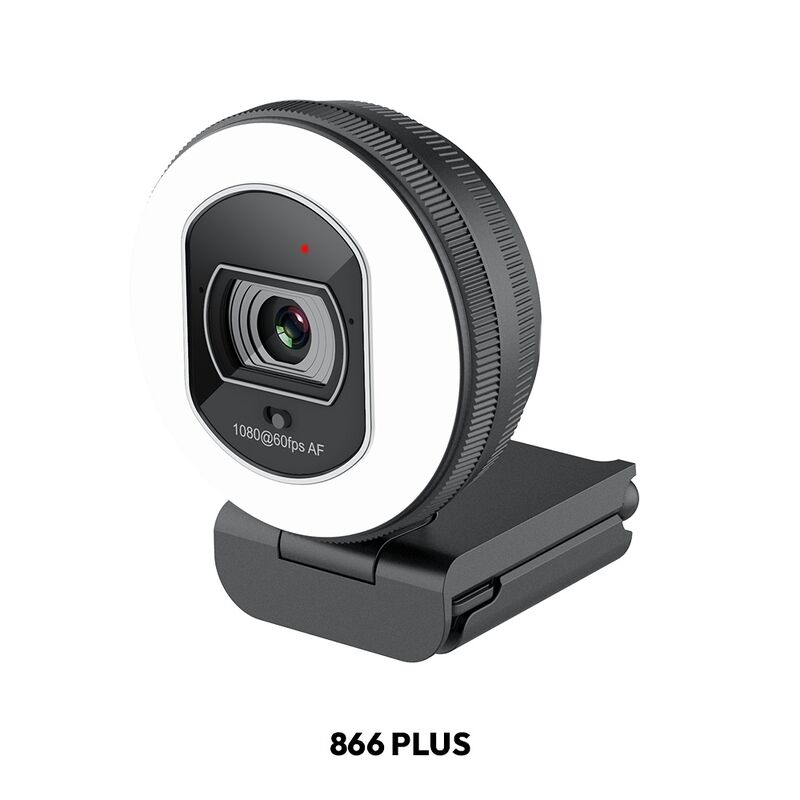

Touch Light USB Auto Focus Webcam 2K 30fps Video Web Camera

Engineered for reliable digital transmission, the 866 PLUS USB webcam integrates advanced optical and acoustic technologies into a single hardware unit. Processing stability is maintained by the integrated FH8852V200 CPU, which facilitates video capture at a maximum frame rate of 2K at 30 frames per second. Connecting via a standard USB 2.0 interface, the web camera supports broad system integration without proprietary software barriers. The internal architecture supports both YUY2 and MJPEG data formats, ensuring adaptability across different bandwidth conditions. The hardware functions within a working temperature range of 0 to 60 degrees Celsius and handles a maximum working current of 460mA under a standard DC5V supply.

The visual capture capabilities are defined by a 1/2.8-inch lens size and a lens construction incorporating 5E and IR650 elements. The camera achieves a maximum effective pixel count of 1080 horizontal by 1080 vertical, with individual pixel dimensions measuring 2.9 micrometers by 2.9 micrometers. Light intake is managed by an F/N 2.0 aperture, working alongside a 100dB dynamic range to balance exposure across varying environments. The spatial capture parameters include a diagonal field of view of 78 degrees, a horizontal field of 65.5 degrees, and a vertical field of 39.9 degrees. To ensure optical clarity, the device relies on an Auto Focus (AF) system to continuously track and sharpen the primary visual target.

Environmental adaptation is highly controlled via the device's integrated features, most notably the touch-activated beauty light. This illumination module incorporates a rotating bezel and provides three distinct color temperatures, which can be finely adjusted using a stepless dimming function. Audio processing is handled by an internal 2-channel stereo noise-canceling microphone, explicitly configured to filter ambient noise while capturing clear vocal frequencies. For hardware-level security, the camera shell includes a physical privacy cover switch, giving the operator absolute control over the optical sensor's exposure.

A primary operational advantage of this USB webcam is its multifunction remote control, designed to manage complex functions from a distance. Operators can utilize the remote to manipulate the camera's directional orientation, including up, down, left, and right tilts. The remote provides direct access to optical controls, allowing users to zoom in, zoom out, and switch instantly between Auto Focus (AF) and Manual Focus (MF) modes. Specialized focus commands for macro and far distances are included, alongside a function to alternate between 50Hz and 60Hz frequencies. The microphone can also be muted remotely, and the device can be reset to factory default parameters via a dedicated button.

The structural integrity of the web camera requires adherence to specific operational guidelines, including maintaining a relative humidity of 80 percent or lower. The device must not be subjected to heavy pressure during physical assembly, and strict anti-static procedures must be observed during handling. System compatibility is extensive, guaranteeing seamless operation on platforms including Windows 7, 8, 10, 11, Mac OS, Android, Linux, and Ubuntu. The storage specifications permit safe housing in temperatures ranging from -30 to 85 degrees Celsius.
