| Brand Name: | Xingzengcai |
| Model Number: | 868PLUS |
| MOQ: | 1000 pieces |
| Price: | USD 17.83~16.90 / pieces |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T,L/C |

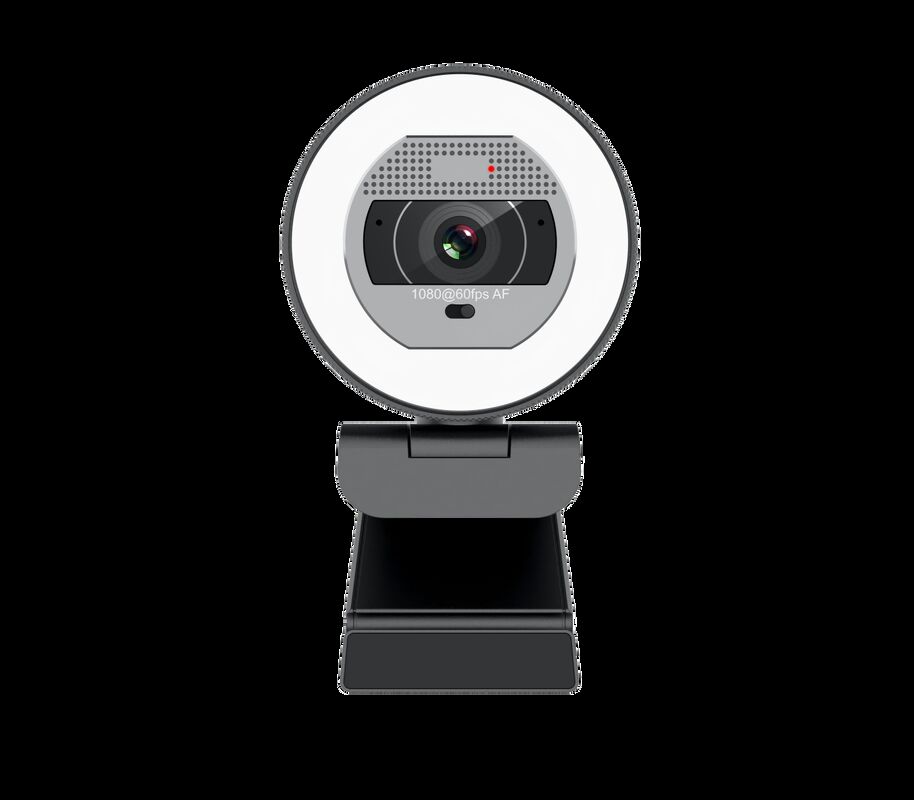

The 868 PLUS USB Camera features the FH8852V200 CPU integrated with the SC200AI sensor, providing a high-resolution output of 1080 by 1080 effective pixels. The 1/2.8 inch sensor and 2.9μm*2.9μm pixel size deliver precise imaging, while the dynamic range of 100dB ensures clarity in varying light conditions. This USB2.0 camera supports YUY2 and MJPEG data formats for compatibility across multiple platforms.
The lens construction employs a 5-element design (IR650) with an F/N ratio of 2.0, delivering a field of view of 78° diagonal, 65.5° horizontal, and 39.9° vertical. Autofocus functionality allows seamless adjustments, supporting a smooth 2K resolution at 30 frames per second. Integrated audio includes a 2-channel stereo microphone with noise reduction.
Lighting is handled by a touch-controlled, rotatable tricolor warm light with infinite dimming capability, enhancing image quality in low-light environments. The camera operates at DC5V with a maximum current of 460mA, compatible with Win 7/8/10/11, Mac OS, Linux, Android, and Ubuntu systems. Operating conditions range from 0 to 60°C with storage temperatures from -30 to 85°C, and relative humidity must be below 80%.
Structurally, the camera includes a lens, base, MIC hole, privacy cover switch, touch panel, brightness adjustment, and lamp shade for functional convenience. The device is designed to withstand static precautions during assembly and transportation and should not bear heavy pressure during installation.
| Video Resolution | 2560*1440 1920x1080 |
| Frame Rate | 2K@30fps ,1080P@30fps |
| Image sensor | 1/2.8 inch |
| Dynamic range | HDR mode 105db |
| AI | No support |
| Format | MJPG, YUY2, H.264 |
| Lens | 5E (4+1IR) |
| Aperture F value | F/N2.0 |
| View Angle | 78° (no distortion or aberration) |
| Focal length | 7cm～∞ |
| Private shutter | Built-in exclusive patented design privacy shutter |
| Focus method | Autofocus(AF); |
| MIC | -36db+ high sensitivity, 65dBsignal-to-noise ratio, 2-channel stereo noise reduction dual MIC, 3m long-distance pickup clear and natural； |
| Tripod interface | available to use camera tripod, suitable for desktop placement, laptop, LCD or CRT monitor |
| Port | UVCStandard driverless Type A USB2.0 port (support for USB3.0) |
| LED Light | Rotating infinitely bright degree adjustment, touch control 3-color light source selection, according to the chat environment for automatic fill light, let chat become more warm |
| Remote Control | 18-button remote control 360degree borderless (image zoom in/out, up/down/left/right; image brightdegree adjustment; one-touch image off; one-touch mute) |
| Tripod | Ergonomic 360-degree free swivel adjustment for stability and comfort |
| USB cable | 1.6 m magnetic ring anti-interference shielded cable, video data transmission is smoother and more stable |
| System Compatible | 2.4GHz Intel Core2 Duo Processor or higher, 2GB of RAM or higher, USB2.0 port (USB3.0 is required for 4K products)； Win 7 / 8 / 10； Mac OS 10.6 or above； Chrome OS 29.0.1547.70 or above； Linux 2.6.24 or above； Ubuntu® Linux 10.04 or above |
